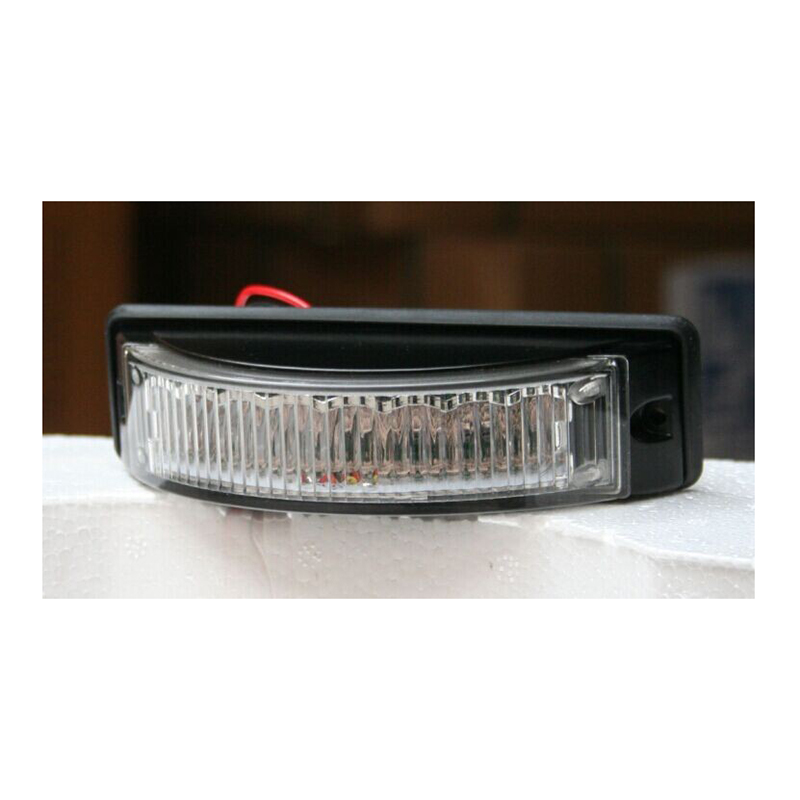

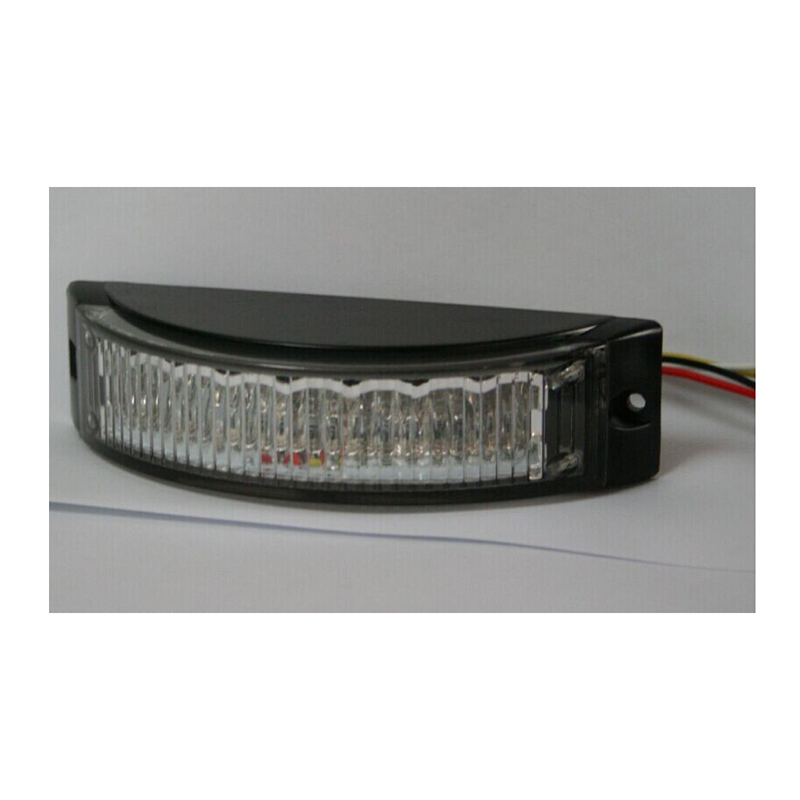

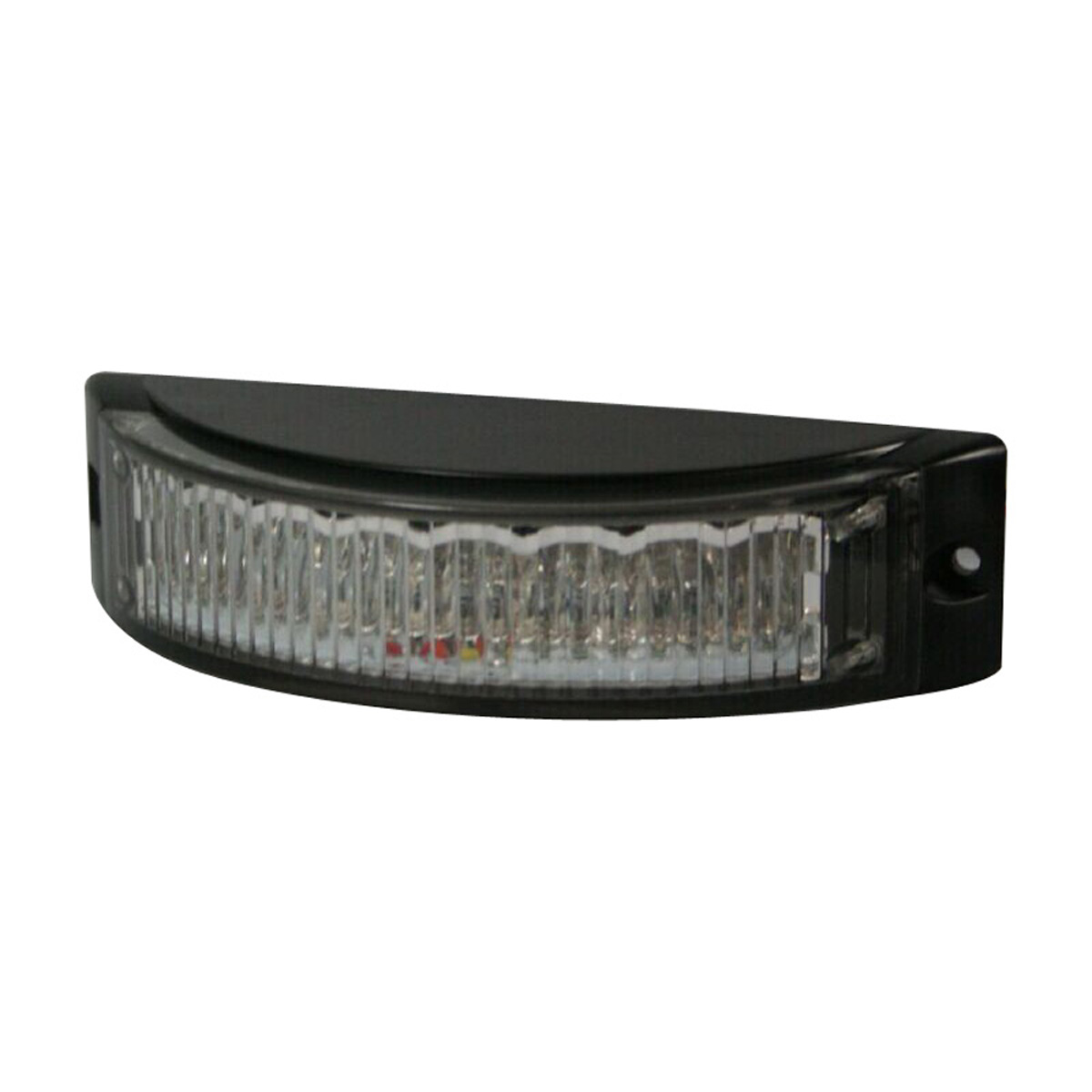

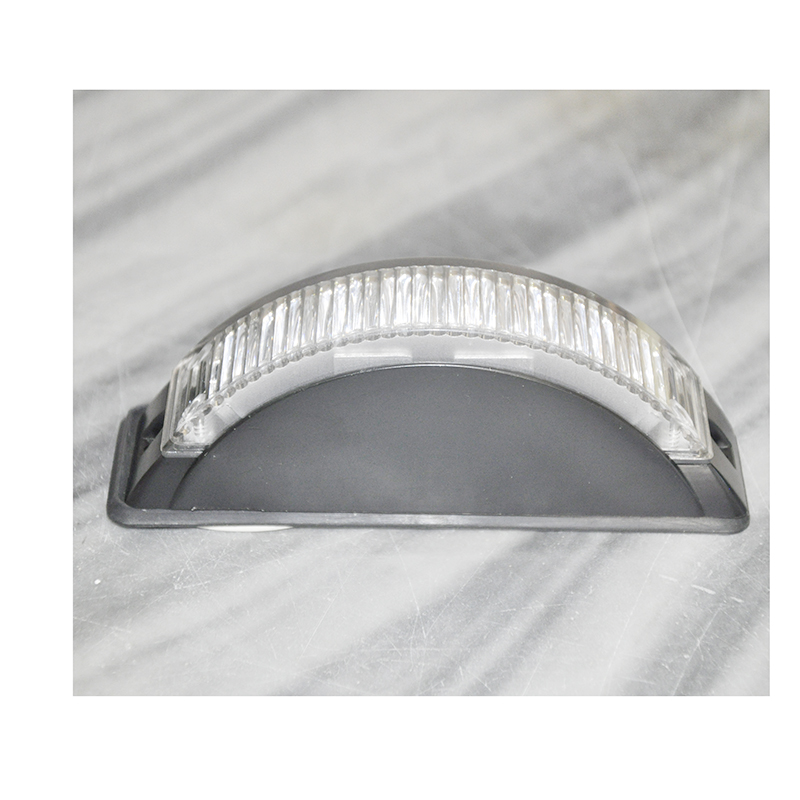

LTD-58 180 degree arc grille lights

product type:LTD-58 180 degree arc grille lights

$0.00-$0.00 $0.00

  • Min Order :
  • Color :
  • Size :   5.68 × 1.6 × 1.9 Inches
  • Type :   LTD-58 180 degree arc grille lights
  • LTD-58 180 degree arc grille lights DETAILS

180° Grille and Surface Mount LED Strobe Light, LED grille lights, LED module lights, Automotive LED headlights
Description:

This is our latest LED STROBE WARNING LIGHT which can be widely used on ,The cover is made of PC material with  High transparency, fastness and impact resistance; Using 8pcs 1W power LED as light source, designed retroreflector creates a 180°level viewing angle and a wide verticle viewing angle.
This light can be widely used on vehicle of Public security, Fire departments, engineering and medical aid
Build-in 19 flash patterns,can be selected freely via trigger switch, also can be customized according to client's requirement
Installed with 2-ST3.9X13 self-tapping screw, Distance between mounting holes is 128mm
fully-sealed  cover,IP64
the housing is cast in aluminum ,which makes the light's working much cooler ,stable and longlasting
color option :RED, amber, blue and clear, also two color combination is available.

180° Grille and Surface Mount LED Strobe

China 180° Grille and Surface Mount LED Strobe ,Higher power LEDs grille lights and Surface Mounted Lights

Feature:

Build-in 19 flash patterns,can be selected freely via trigger switch, also can be customized according to client’s requirement

Installed with 2-ST3.9X13 self-tapping screw, Distance between mounting holes is 128mm

fully-sealed  cover,IP64

the housing is cast in aluminum ,which makes the light’s working much cooler ,stable and longlasting

color option :RED, amber, blue and clear, also two color combination is available


Installation Instructions

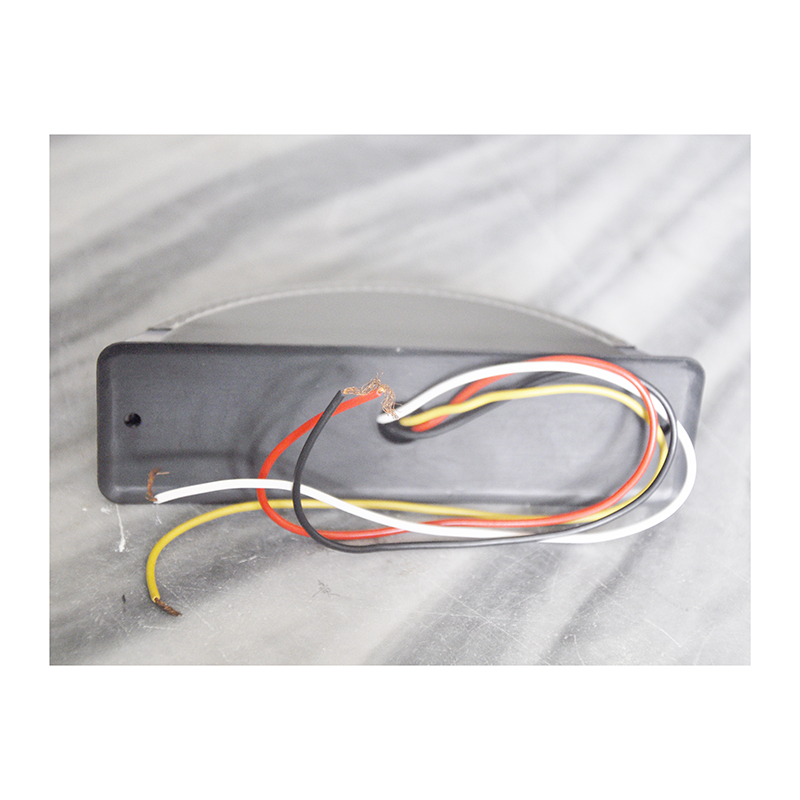

The "Red wire" connect to the battery positive, The "black wire" connect to the battery negative

(if reverse,the light would not work),The “yellow wire” is flash mode Trigger wire(connect to the battery positive)

User need to use inching button to select the flash mode



Mode trigger time:T<1s next mode;1s<t<5s previous mode;t>5s default mode

Multiple lights Installation instructions

simultaneous flash: connect all yellow wire together of each group

alternating  flash: connect one group’s white wire to the battery positive while the other group’s not

China 180° Grille and Surface Mount LED Strobe ,Higher power LEDs grille lights and Surface Mounted Lights

MAINTAINING;

Once the light is not working, please check the wiring is correct, if the circuit has problem,please consult professional

when changing the LED, please remove the seal gum at the back first, unscrew the bolt, then use same power LED to replace (default power:1 W).

Please put back together as it was after finish changing the LED, make sure the seal ring is functional and use 704 sealant to seal the back cover

If the light is used according to the instruction,we provide 6 month warranty period base on the commercial invoice and warranty card.




Voltage: DC10~30V

Current: <1.25A

Packing dimension: 155×60×45mm

Power:8W

 flash frequency 1~5Hz

colour: RED, amber, blue and clear, also two color combination is available

operating temperature:  -20~55℃

Net weight:  0.2kg

Shipping Information:

  • FOB Port:Ningbo

  •

  • Lead Time:7 - 8 days

  •

  • Dimensions per Unit:5.68 × 1.6 × 1.9 Inches

  •

  • Weight per Unit:0.15 Kilograms

  •

  • Units per Export Carton:20

  •

  • Export Carton Dimensions L/W/H:6.1 × 1.78 × 2.3 Inches

  •

  • Export Carton Weight:0.2 Kilograms
