Police LED Front Rear Motorcycle Warning Flashing Light for highway traffic patrol
Description:

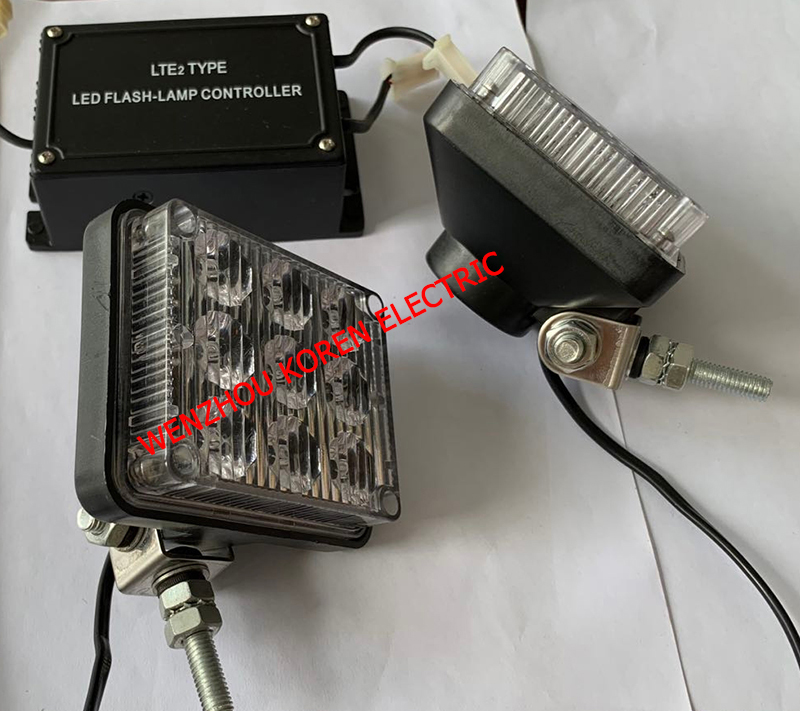

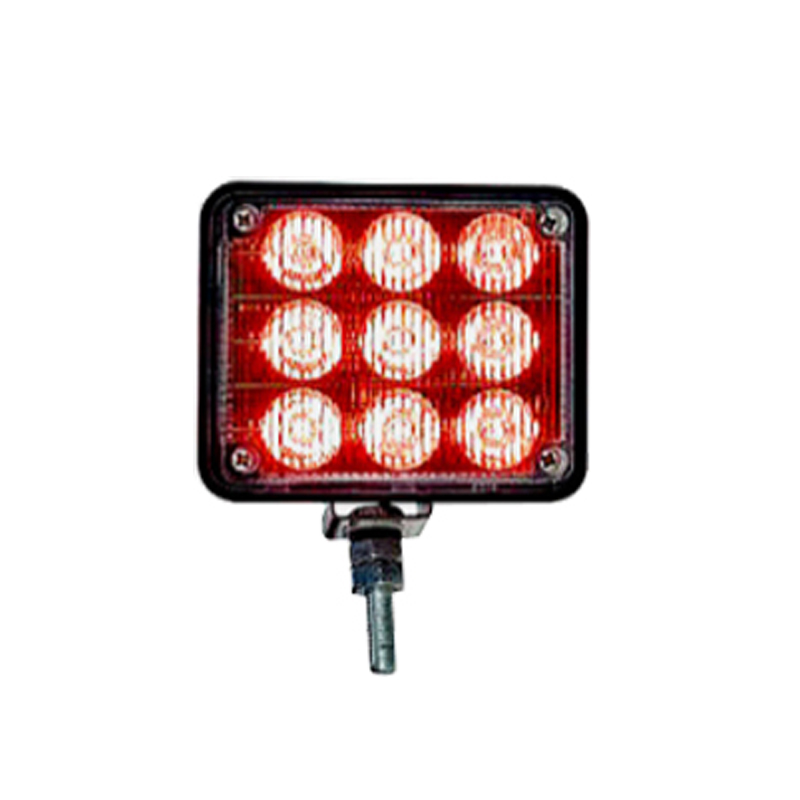

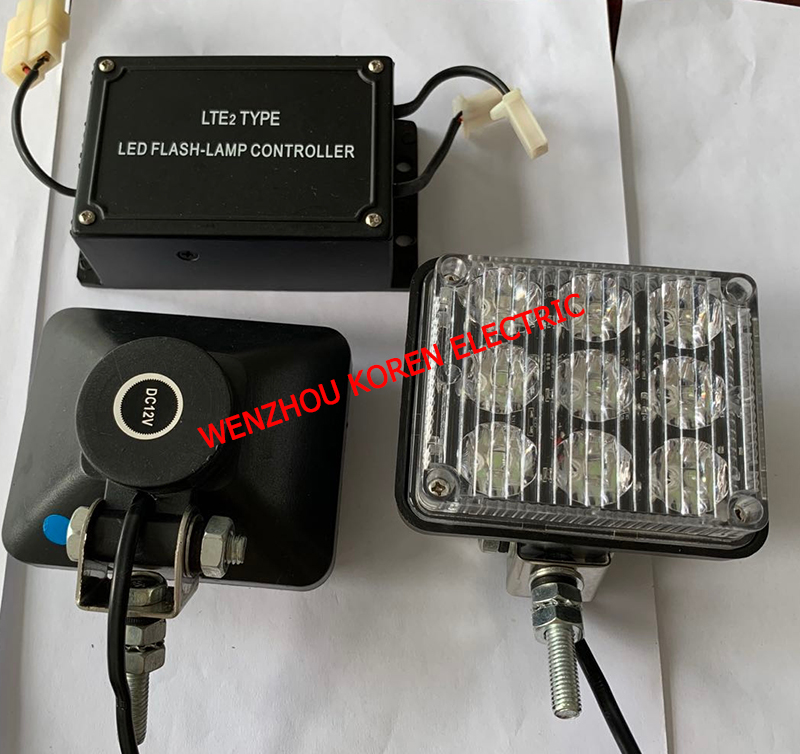

     LTD76A nine bulbs LED light head is made of high brightness LED, it use microcomputer programming chip, and constant voltage circuit design, It has high brightness, low power loss, long life and so on the merits, it has a lot of kinds of flash pattern offer to choose and power off memory function. suit install in automobile vehicle.

1. Technical parameter:

A. Working voltage: □12V(DC11V~15V)

                   □24V(DC21V~26V)

B. Consume electric current: <600mA

C. Ambient temperature: - 40℃~+50℃

D. Warning light color: □red; □amber; □blue;

□clear; □green

E. Power supply way: Constant voltage current control

F. Continuous working time: 4 hours

        G. Waterproof and shakeproof

4. Operation

Scan-Lock™ -Each flash pattern is available in two modes; Phase 1 & Phase 2. The patterns are controlled with the YELLOW wire.

To advance to the next pattern, apply +VDC to the YELLOW wire for less than 1 second.

To cycle backwards, apply +VDC for more than 1 second.

To reset to the factory default pattern, turn off power to the headlight and while applying +VDC to the YELLOW wire, turn the headlight back on. Continue to apply voltage for 5 seconds.

headlights configured to display the Phase 1 mode of a pattern will flash simultaneously. Any lightheads configured to display the Phase 2 mode will alternate with any Phase 1 lightheads with the same pattern.
