Integrated warning lighting display

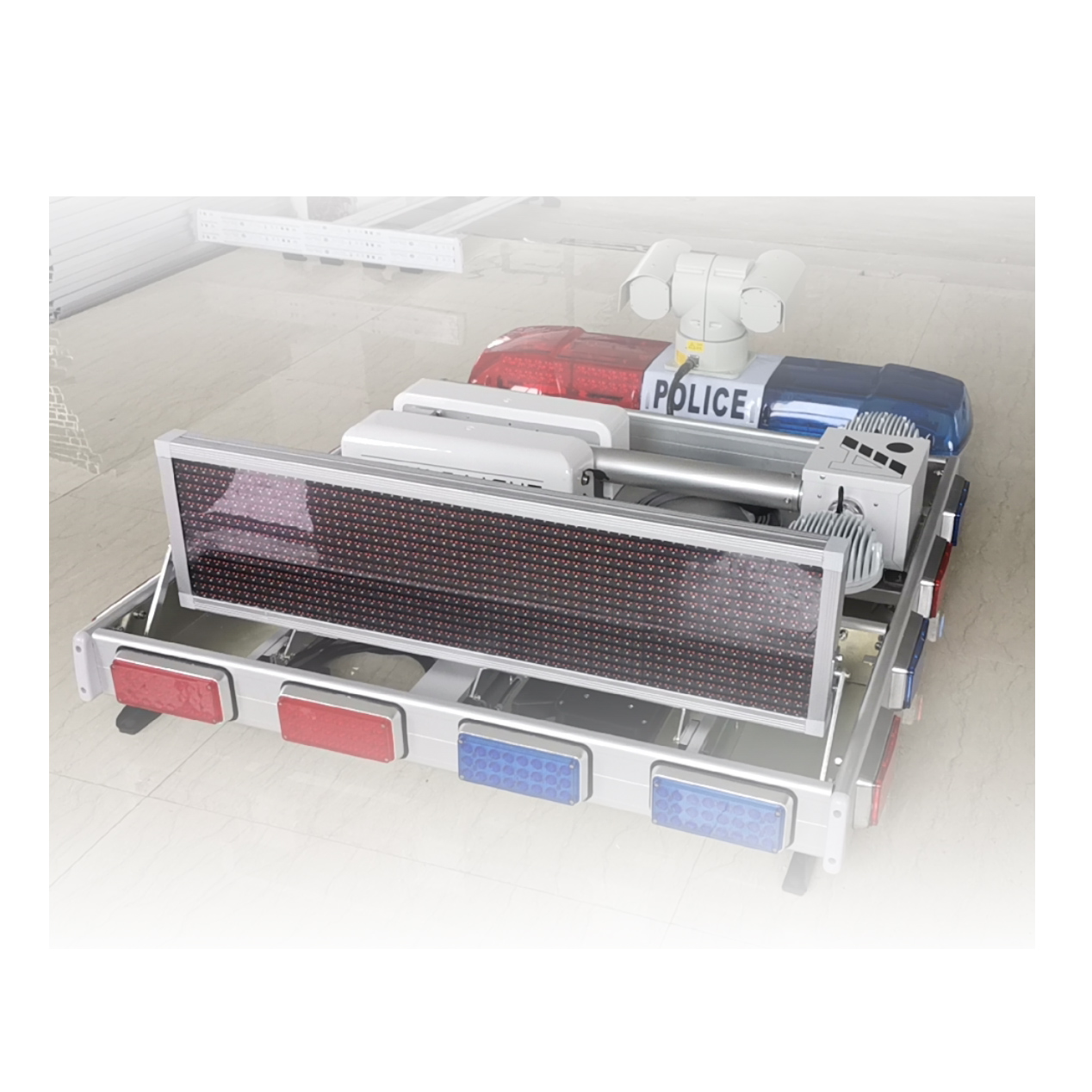

Warning lighting display integration equipment is a multi-functional system that organically combines lifting vehicle mobile lighting equipment, long row of warning lights, vehicle message display screen, integrated control system and full-circle warning lights.It has lighting, light warning, sound warning, text warning and release, propaganda, amplification, radio, recording and other functions.
1. Warning lighting display integrated equipment equipped with vehicle-mounted display, with the inverted function, using the stand up, reset when driving to reduce wind resistance, fully sealed equipment, imported high brightness LED tube, 180º Angle display effect is the same, completely solve the LED tube luminous Angle is small problem.The on-board display screen provides all the text of traffic management requirements, and provides the text input and layout software to input the message text at will.Vehicle display screen adopts LCD operation controller, which can be directly set in the cockpit to display text and display, flashing mode etc.
2. Warning lighting display vehicle mobile lighting equipment equipped with integrated equipment is directly applicable to 12V DC power supply.The vehicle mobile lighting equipment has the function of up and down. The equipment rises from the initial horizontal position to 1.1 meters after 90º, and completes the search and positioning lighting by rotating the head vertically at 330º and horizontally at 380º. It has a wind resistance of 50Km/h and is equipped with remote wireless remote control

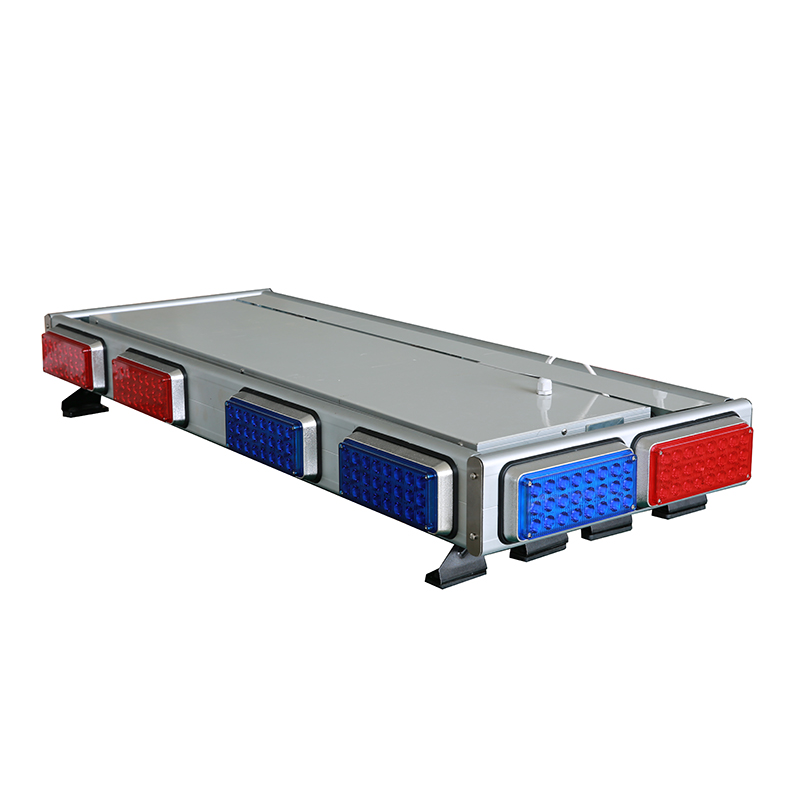

3. Warning lighting display the 1170X1500mm installation bracket configured in the integrated equipment is used for the installation of integrated warning lights, display screens and floodlights. Red and blue LED warning lights are equipped around the installation bracket. The warning lights adopt high-brightness imported LED.Implementation of gb13954-2009 "Police car, fire truck, ambulance, engineering emergency vehicle marking lamps" standard, the use of high transparent PC material, protection grade IP67, with waterproof breathable film, with power reverse connection protection function.
4. Integrated controller, the above equipment integrated control, alarm lights, display, lights can be opened and closed respectively, can control all the required functions of the alarm lights, and sound adjustment and a shout interface;Controllable display lodging, display content selection, display brightness, USB interface for display data transmission, and WIFI connection function, equipped with APP to control the display and control the warning light on and off;Controllable lighting all functions, as well as reserved camera zoom, wiper control, AUX and other functions, controllable head rotation speed, head rotation four-dimensional rod control.
