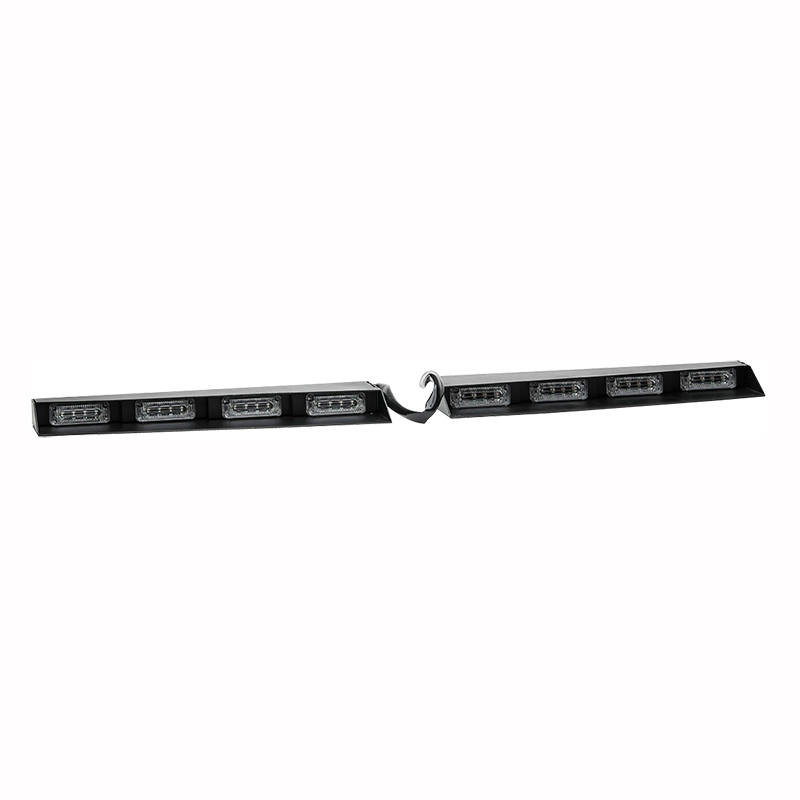

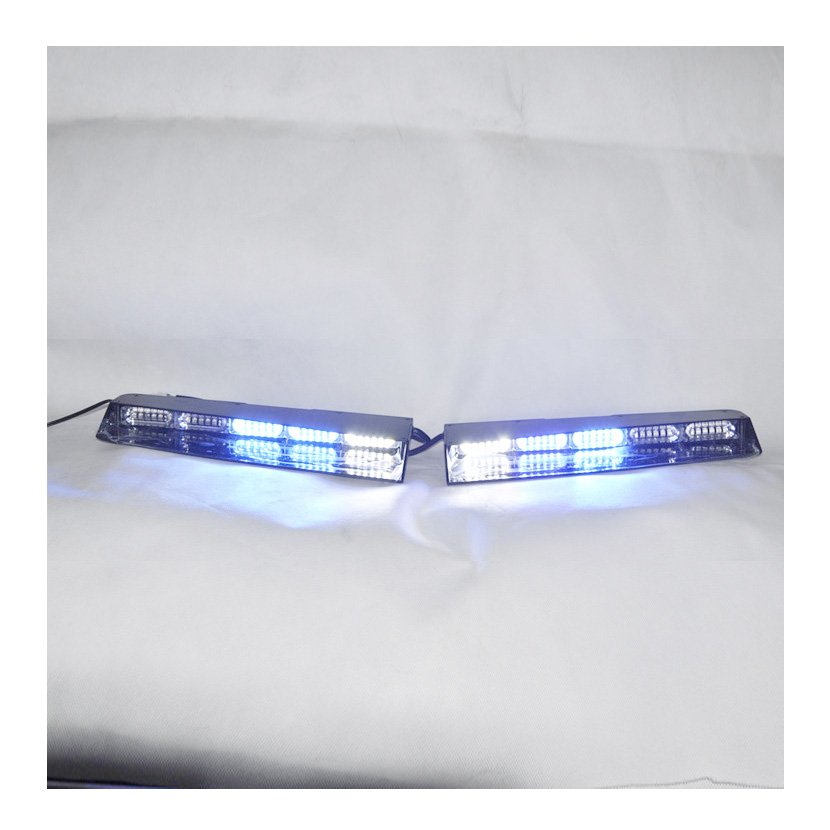

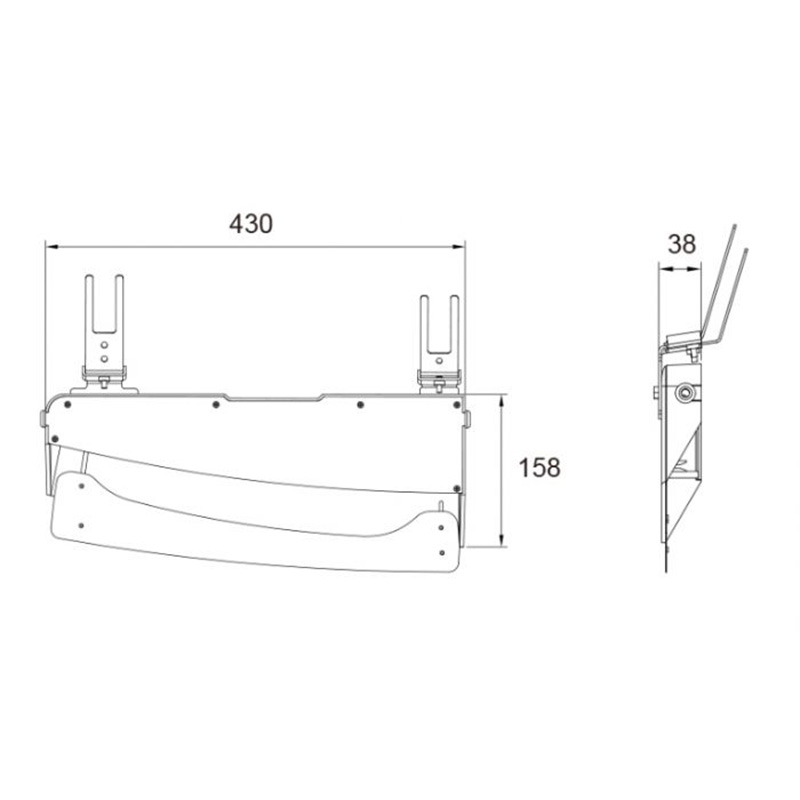

LED High power under cover visor interior light bars Description:The L610 Series Visor Lightbar is a standard in the industry. It boasts TIR4 or TIR6 LED clusters with 12flash patterns that can be synchronized with other lights. Ideal for professionals, these lights areproofed for water, weather, and intense vibration.It can be mounted just about anywhere you please withoptional L brackets. They are built to last through even the toughest jobs.Voltage: 12V/24VDCAvailable Colors: Red,Blue,Amber,White,Green or Combine color.4 wires for simple set-up (1 pos,1 Neg,1 Sync,1 Pattern).PC housing and aluminum plate base.Dimensions: Length: 17"; Width: 6.15" ; Height: 1.4"

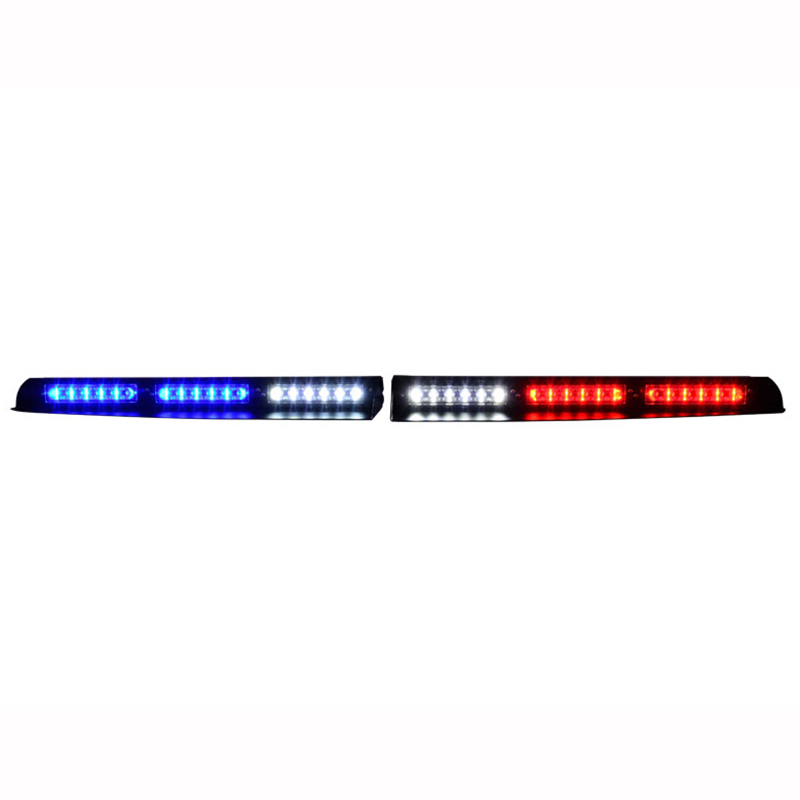

610B Series under cover visor lightbar LED clusters can be with GEN3 TIR3, linear 6 or GEN4 linear 9 LEDs, Single or Three color change available. over 25 flash patterns to meet different requirement.
This is Linear6 LED clusters total 10 modules for whole set visor light bar.

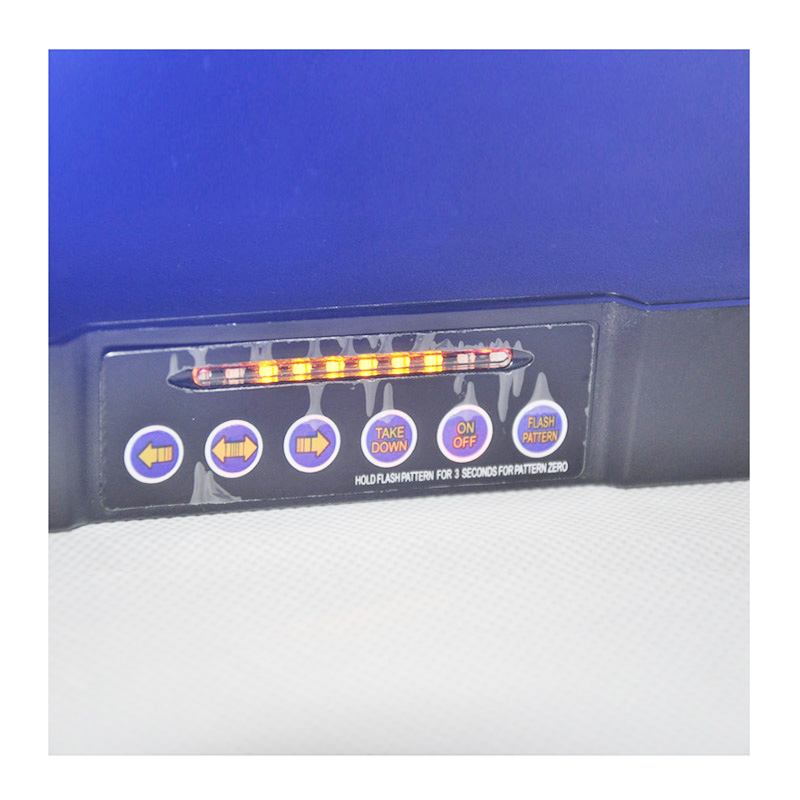

- On/off – turns unit on and off by depressing button
- Take Down – turns 1 LED module each side to a steady on mode (not flashing) or to flash mode by depressing the button. The LED modules with this option are located to the inner side of the visor.
- Arrow left – directional pattern feature when button is depressed will provide a direction left pattern
- Arrow centre out – directional pattern feature when button is depressed will provide a direction centre out pattern
- Arrow right – directional pattern feature when button is depressed will provide a direction right pattern
The streamlined design makes it virtually unnoticeable, perfect for any stealth police car, forklift and trucks etc.

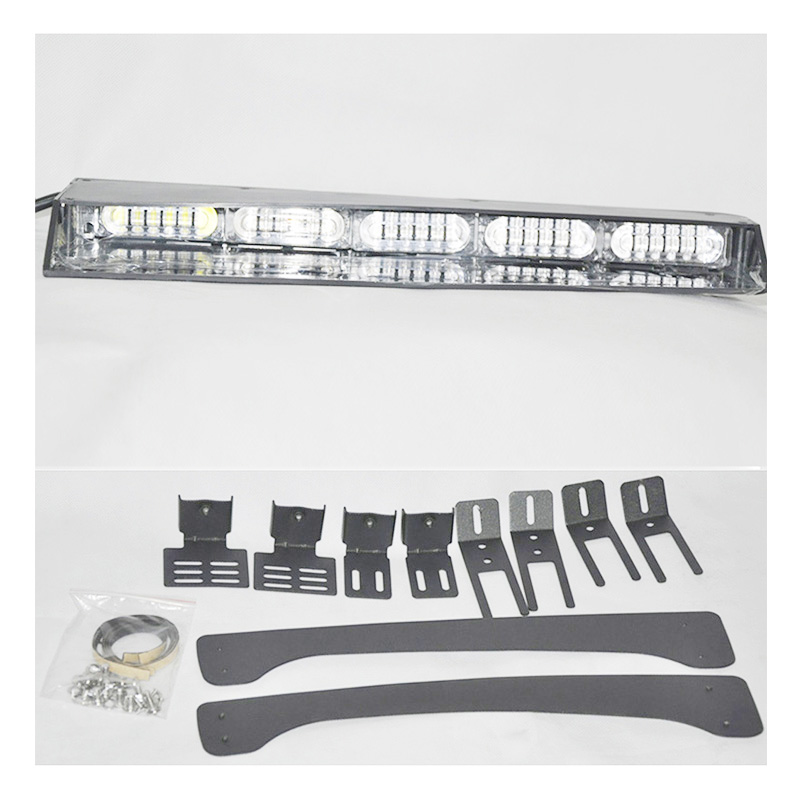

These light bars are attached with visor mount brackets by loosening the screws of the visor in the vehicle and slipping the clips behind them. There’s a photo showing examples of installations. Installation takes about 5 to 10 minutes.
