XT6B LED module light

product type:XT6B LED module light

$0.00-$0.00 ~~$0.00~~

Min Order : 1
Color : Red,Blue,Amber,White,Green
Size : 122mm*29mm*8.1mm
Type : XT6B LED module light

ADD TO CART

INQUIRY

XT6B LED module light DETAILS

Description

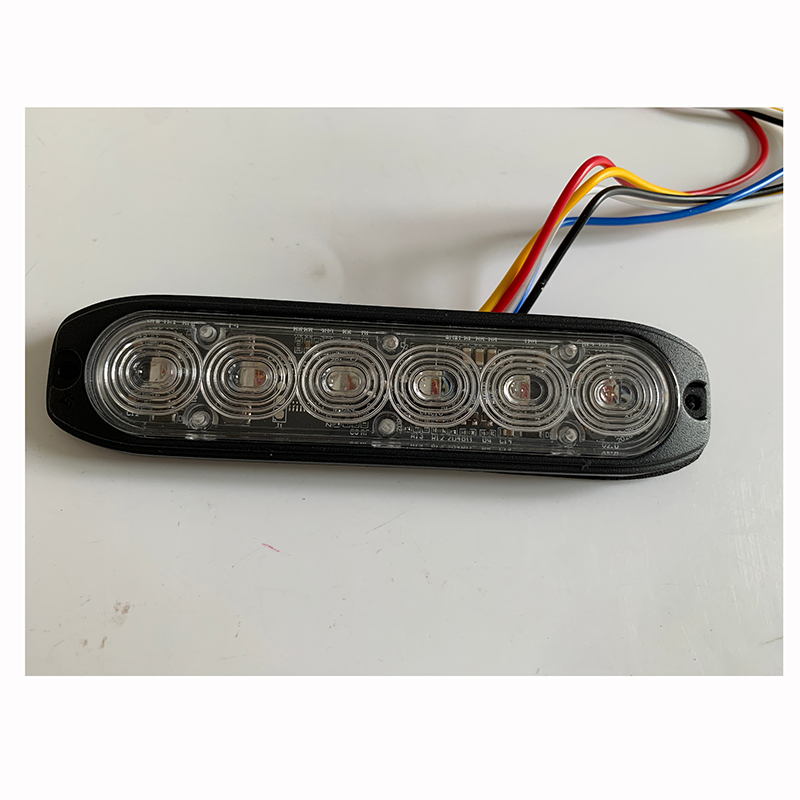

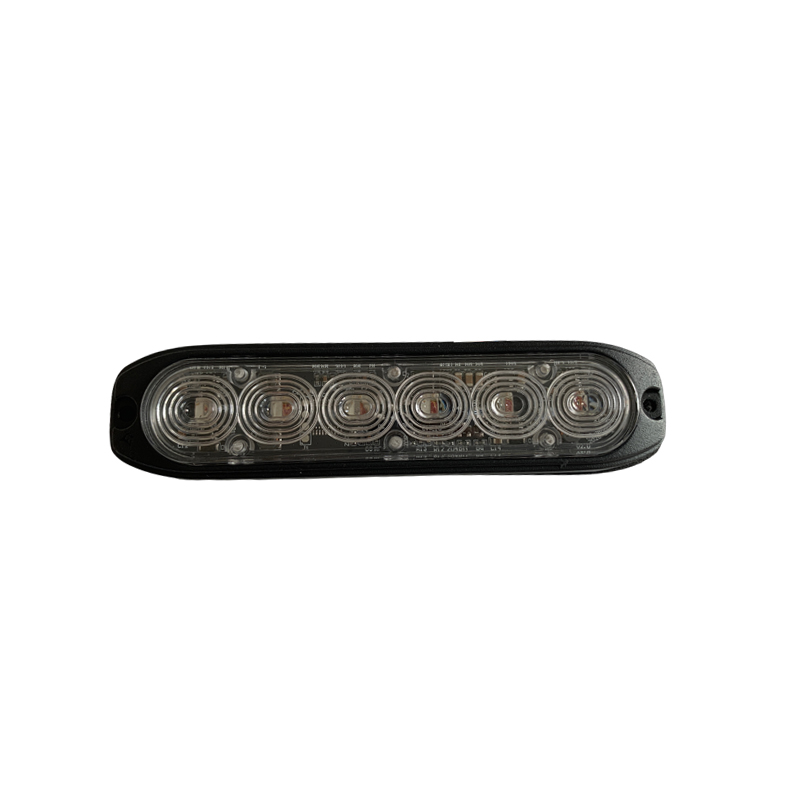

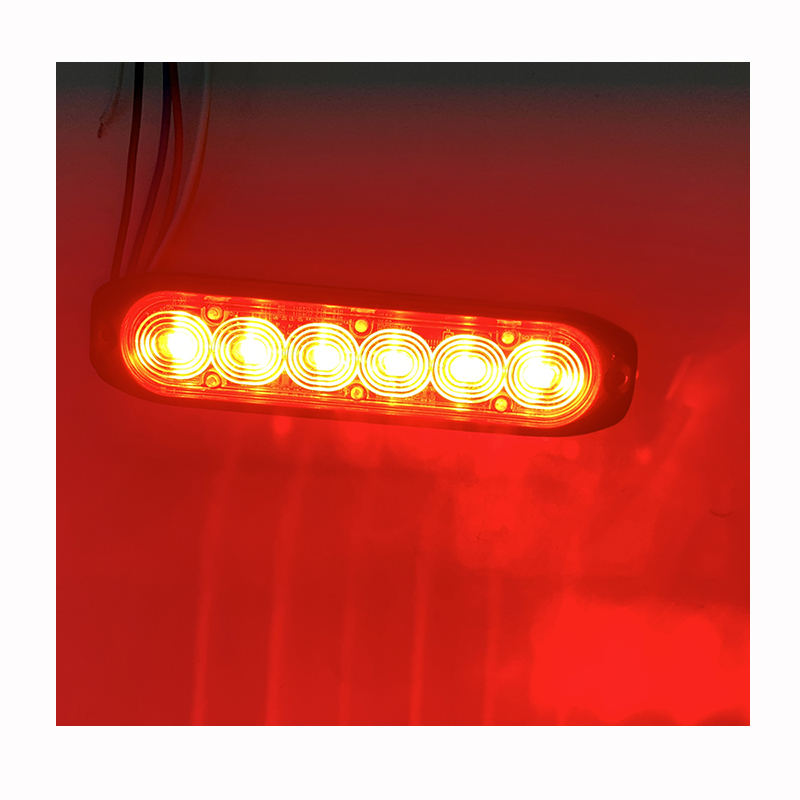

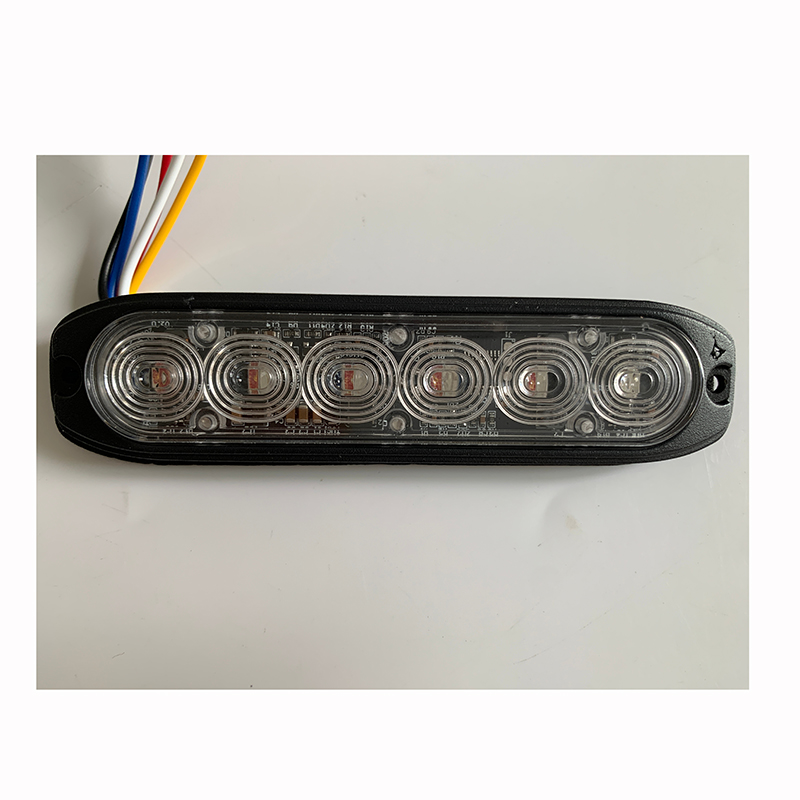

The XT6B LED Module Light is a high-performance automotive warning light featuring 6 X3W/LED chips in a compact linear lens array. Designed for durability and visibility, it is suitable for emergency vehicles, construction equipment, and industrial signaling applications.

Electrical Specifications

Parameter	Specification	Remark
Rated Operating Voltage	DC 12V / 24V (auto-ranging)	Input range: 9–30V
Power Consumption	18W	Instantaneous peak power
LED Type	3W × 6 LEDs	Chip size ≥ 38µ
Light Source Configuration	Linear lens array, 6 LEDs	High-efficiency optical design
Continuous Operation	≥ 200 hours	Under standard conditions

Optical & Control Features

Parameter	Specification
Available Colors	Red / Blue / Yellow / White (selectable)
Flash Patterns	21 Flash patterns (programmable)
Control Logic	Self-flash on power-up; mode switch via blue wire; sync via yellow wire; steady-on / dimming via white wire
Synchronization	Multiple units sync when yellow wires are connected together
Custom Programming	Supports left/right versions, dual-color switching available

Mechanical & Appearance Specifications

Parameter	Specification
Housing Material	Lens: UV-resistant PC (Mitsubishi S2000UR); Base: Black powder-coated aluminum
Dimensions	L 122mm × W 29mm × H 8.1mm
Appearance Quality	The surface is free of white spots, pockmarks, color differences, scratches, stains, cracks and deformations

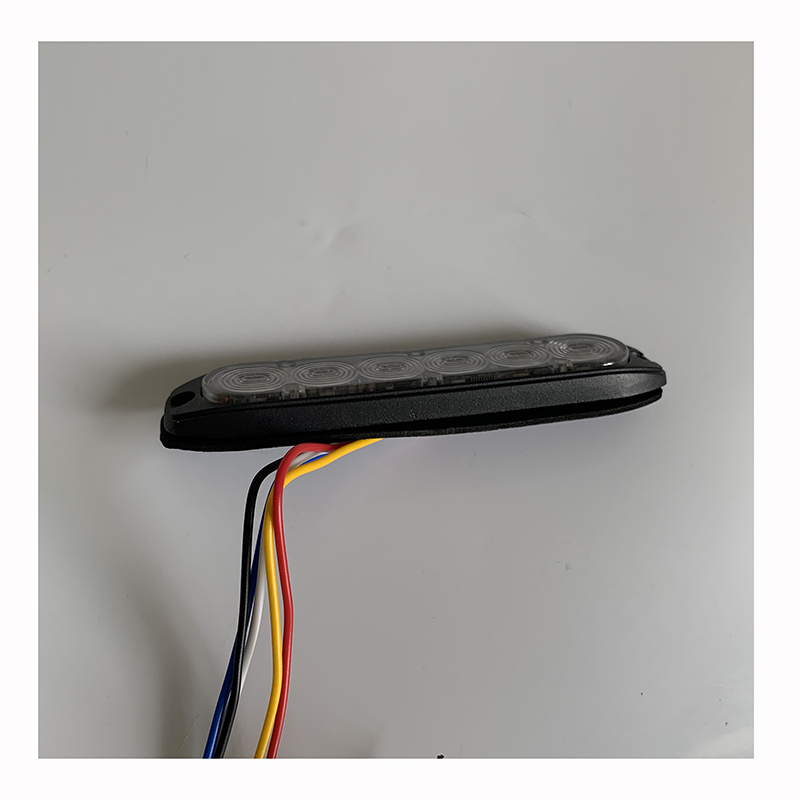

Cable	5-wires, 30cm length, 16/0.15 tinned copper, colors: Red, Black, Blue, Yellow, White
Ingress Protection	IP66

Packaging Information

Parameter	Specification
Inner Box Size	15cm × 4cm × 3cm
Outer Carton Size	61.5cm × 21cm × 16.5cm
Quantity per Carton	100 pcs
Packaging Material	Outer: imported white kraft board; Inner: eco-friendly kraft paper
Branding	No logo; custom printing available upon request
Net Weight / Gross Weight	0.08 kg / 0.1 kg /pc

Wiring & Functional Description

Wire Color	Function
Red / Black	Power input (+ / –)
Blue	Mode selection (tap to ground to cycle through 21 patterns)
Yellow	Sync line (connect all yellow wires together for synchronized flashing)
White	Steady-on / dimming control (connect to positive for constant light or reduced brightness, depending on firmware)
