LEDs grille lights and Surface Mounted Lights, LED lighthead
Description:

This Series Grille Light is SAE and ECE R10 approved and has been thoroughly tested to perform intoughest climates and road conditions. It boasts TIR12 LED clusters with 26 flash patterns for multi-purpose use with simultaneous flash, alternating colors, and synchronization capabilities.. It's also vibration resistant so performance isn't compromised in harsh terrain.Select either a solid or split color option. Choose from five solid colors (red, blue, white, amber, and green),or select from one of six dual color units to meet your needs.Select the optional L bracket for an additional mounting option for your vehicle.Four standard connecting wires (Positive, Negative, Sync, Pattern) allow you to easily integrate this serieslight into your vehicle's lighting system.Voltage: 12V/24VDCAvailable Colors: Red,Blue,Amber,White,Green or Combine color

Feature:

Base: Aluminum
Lens: Polycarbonate
LEDs per head: 12
Voltage: 10-30VDC
Max Current Draw : 1.0AMP for 12VDC / 0.5AMP for 24VDC
Max Power: 12/36 Watt,CREE 1W/CREE 3WFlash Patterns: 26
Single Colors: All Amber/ Blue/White/Green/ Red Or Combine color

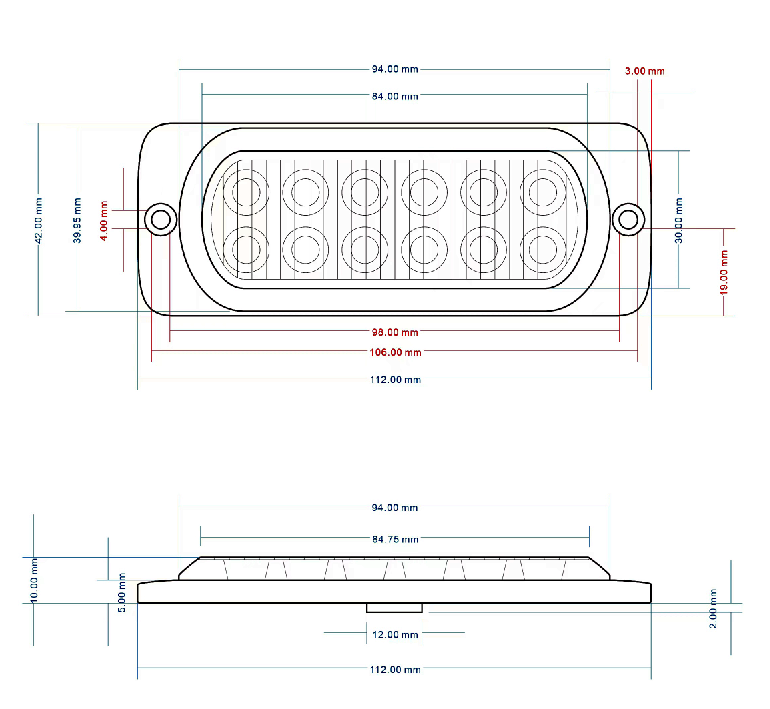

Drawing for LTD-212 /TIR12 clusters
